12 w 1 USB C z podwójnym HDMI 4K

VGA Port x 1

For connecting the display by the VGA cable, output the display content of the computer

Support rebuilding and extended display features function

Maximum supported resolution:1080P

TF card reader x 1

For external TF memory card. USB2.0 card reader, support SD2.0 specification

SD card reader x 1

For external SD memory card. USB2.0 card reader, support SD2.0 specification (SD/TF card does not support simultaneous use)

RJ45 x 1

Used to connect to the Internet through a network cable. Support 10/100/1000 BASE-TX Auto MDI/MDI-X, transmission rate :1000 Mbps

Audio x 1

3.5mm stereo audio output and MIC input interface, American Standard (CTIA)

Downlink USB C interface x 1

Support 20 V/3A(Max 5A) max input power supply and charging host computer

LED indicator light x 1

Green light Power on

Product Description

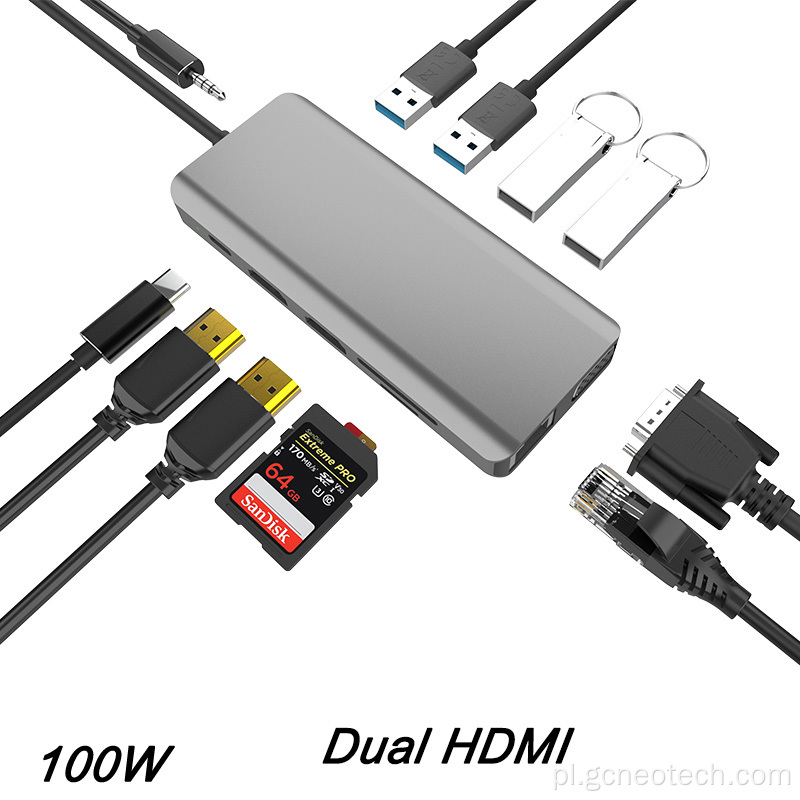

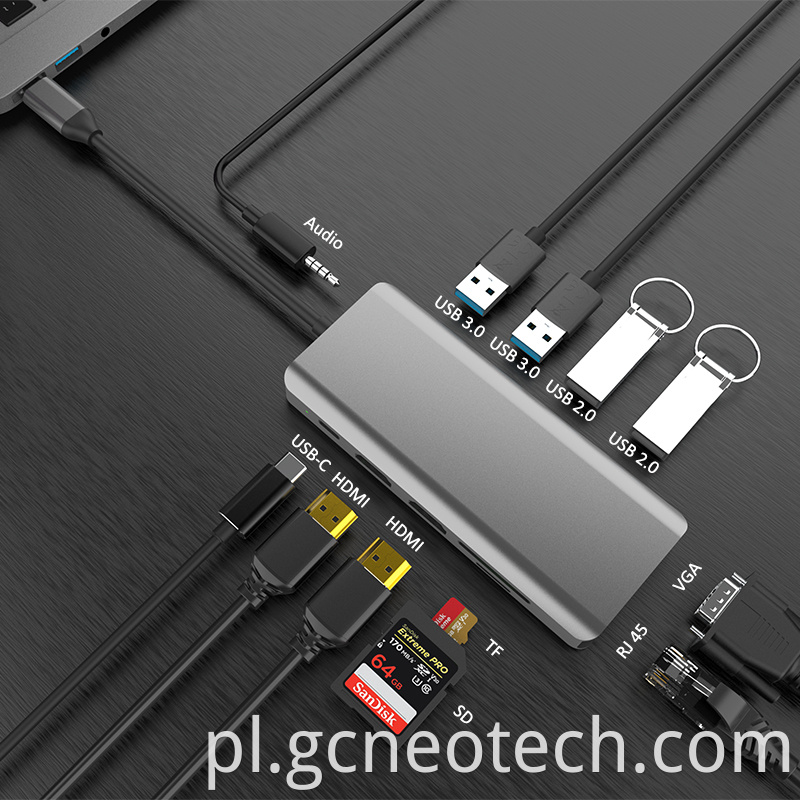

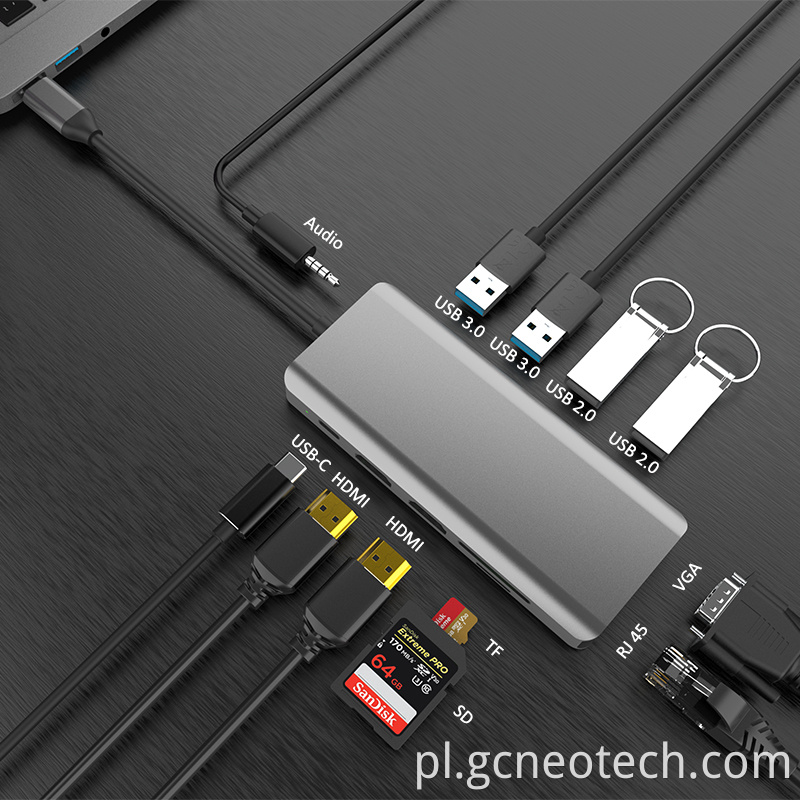

This is a USB C dock, support USB C to HDMI&VGA,support 2 USB3.0A devices and 2 USB2.0 devices connect together at the same time, support SD/TF reader. meanwhile support external PD charger to charge the host computer and Type-C interface to RJ45,support USB interface to 3.5mm Audio

USB-C uplink port x1

Used to connect to a computer, USB3.0 plug, 130 mm cable

Support USB3.0 and down compatible USB2.0/1.1, up to 5Gbps transfer rate.

When host computer supplying the power，output power is 5V/1.5AMax;When PD charging，output power is 20V/2.75A max

USB3.0-A downlink port x2

Used to extend connections for USB devices, such as U disk / mouse / keyboard / portable hard disk

Support USB3.0 and down compatible USB2.0/1.1, up to 5Gbps transfer rate.。

Output Power

5V/900mA

5V/1.5A Max( Type C interface PD 20V power supply)

USB2.0-A downlink port x2

Used to extend connections for USB devices, such as U disk / mouse / keyboard / portable hard disk

Support USB2.0 and down compatible USB1.1 (480Mbps Max transfer rate)

Output Power

5V/900mA

5V/1.5A Max( Type C interface PD 20V power supply)

HDMI Port x 2

For connecting the display by the HDMI cable, output the display content of the computer

Support rebuilding and extended display features function

Maximum supported resolution 3840X2160/60 HZ, Downward Compatible Resolution(2 HDMI & VGA max resolution: 1080P, HDMI max resolution 3840*2160/60HZ),Support MST,(4 pictures, double HDMI+ VGA display different picture. 1 computer picture. Mac OS not support MST ,Windows OS can change the display by Win+P)
